Ornatrix 3dsmax: Distortion problem using Ornartix 'Custom User Proxy-Mesh'

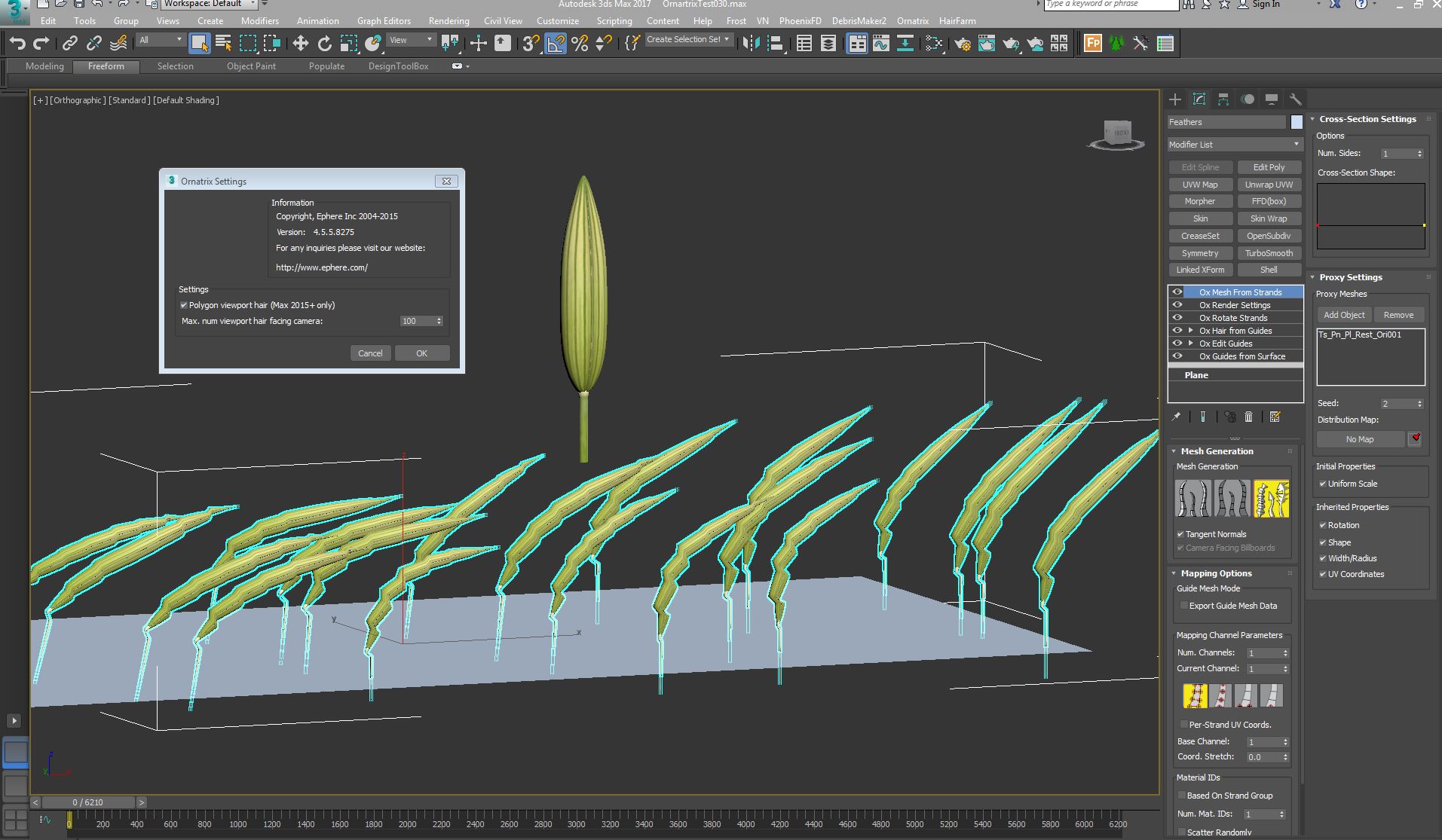

I have distion problem using Ornartix 'Custom User Proxy-Mesh'. You can check the attached image. I'm using Ornatrix 4.5.5.8275 with 3ds Max 2017. Attached Files: OrnatrixIssue2.JPG (281445 bytes),
18 June 2018 #18269
Jeordanis Figuereo	Hello, I can't reproduce this. Can you share your scene for testing? If so, please send it to Jeordanis.f@ephere.com. Jeordanis Figuereo (Product Designer. EPHERE Inc.) LinkedIn Discord
18 June 2018 #18271
agphd	Thanks Jeordanis Figuereo, I sent the scene for testing to Jeordanis.f@ephere.com now. Thank you for your time.
18 June 2018 #18272
Jeordanis Figuereo	Thank you for the scene. I will take a look and get back to you as soon as possible. Jeordanis Figuereo (Product Designer. EPHERE Inc.) LinkedIn Discord
20 June 2018 #18282
Jeordanis Figuereo	Hi, I got this from the team: "Problem is that the proxy mesh doesn't start at 0 along Z axis, the stem goes into negative values." To solve this select all faces of proxy mesh (in sub-object mode) and move them up such that the stem starts at 0 then the artifact goes away. This has been fixed for current versions of Ornatrix but since you are using V4 this workaround should work for you. Let me know if that helps. Jeordanis Figuereo (Product Designer. EPHERE Inc.) LinkedIn Discord
20 June 2018 #18283
agphd	Thank you for your time.

Posted by:		agphd
Data created:	18 June 2018
