importing max fur into maya using Ornatrix




Posted by:Sho
Data created:25 September 2017

Hi I'm tring to import fur, which is made with hair and fur modifire in max, into maya using ornatrix.

I'm kinda new to Ornatrix, so I want to whether or not it is possible.

If theare is a way to import max fur to maya, I want to know how it could be done.



Thank youLaughing

Hi Sho,

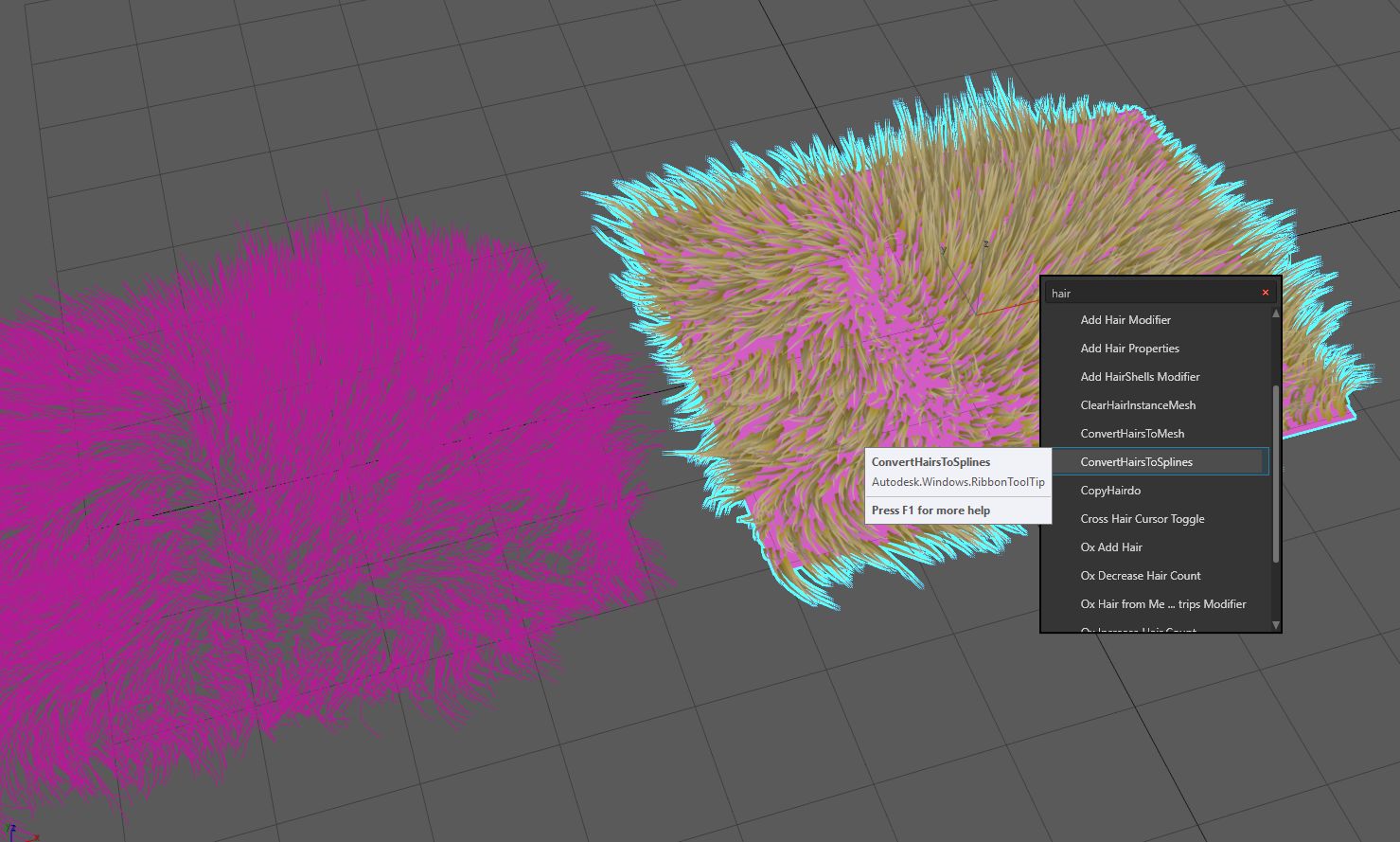

Yes, it is possible, you just have to convert the Hair and Fur object in splines as the picture below. Then import those splines into Maya and in the Ornatrix shelf use Add Hair To Selection, then select the HairFromCurves preset to convert the curves into Ornatrix hair. Maybe you don't want to export a high amount of curves, this can slow down Maya. Ornatrix will interpolate hair between those curves, so try different settings to see how many curves you will need. However, if you want the fur to look exactly like in Max, you should export all the curves. Let me know if this helps.






Attached Files:
Image 1

Jeordanis Figuereo (Product Designer. EPHERE Inc.)

Thanks! I'll try it!

I have one more question. Which format is capable to export spline to maya?

I've tried fbx, but it wouldn't work.



Thanks

See if this script works for you, but maybe is better to ask in Autodesk's forums.

http://www.scriptspot.com/3ds-max/scripts/3dsmax-spline-to-maya-curve

Jeordanis Figuereo (Product Designer. EPHERE Inc.)

Thanks for your help!
